Bar Chart

🍸Overview

A highly customizable and interactive bar chart Composable designed for displaying a list of bars with optional target indicators, tooltips, and click interactions. This component is flexible enough to be used in dashboards, analytical tools, or any visual data representation context in a Jetpack Compose application.

📦 Package

import com.himanshoe.charty.bar

🧱 Declaration

@Composable
fun BarChart(
    data: () -> List<BarData>,
    modifier: Modifier = Modifier,
    target: Float? = null,
    targetConfig: TargetConfig = TargetConfig.default(),
    barChartConfig: BarChartConfig = BarChartConfig.default(),
    labelConfig: LabelConfig = LabelConfig.default(),
    barTooltip: BarTooltip? = null,
    barChartColorConfig: BarChartColorConfig = BarChartColorConfig.default(),
    onBarClick: (Int, BarData) -> Unit = { _, _ -> },
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<BarData>	A lambda returning the list of BarData entries to be displayed in the chart. The list determines the number and height of bars.
modifier	Modifier	Optional Compose Modifier for layout behavior, styling, padding, etc.
target	Float?	Optional float value indicating a target or benchmark line to be displayed across the chart. If null, no target line is shown.
targetConfig	TargetConfig	Configuration for the appearance of the target line, such as color, stroke, and label visibility. Use TargetConfig.default() for default styling.
barChartConfig	BarChartConfig	Governs bar spacing, corner radius, chart padding, and other display properties. Customize using BarChartConfig.
labelConfig	LabelConfig	Controls how labels for each bar are rendered (font size, visibility, position, etc.).
barTooltip	BarTooltip?	Optional tooltip configuration shown on long-press or hover over a bar. Set to null to disable tooltips.
barChartColorConfig	BarChartColorConfig	Specifies the color scheme for bars, labels, backgrounds, and the target line. Use BarChartColorConfig.default() for standard colors.
onBarClick	(Int, BarData) -> Unit	Lambda called when a bar is clicked. Provides the index of the bar and the corresponding BarData. Default is a no-op.

🧮 BarData Model

Property	Type	Description
yValue	Float	The numeric value to be plotted on the y-axis. This determines the height of the bar.
xValue	Any	The corresponding value for the x-axis. It can represent a label, date, or category and can be of any type.
barColor	ChartColor	The fill color of the bar. Defaults to Color.Unspecified converted to SolidChartColor.
barBackgroundColor	ChartColor	The background color behind the filled portion of the bar, typically used to indicate the max range or to add contrast. Defaults to a semi-transparent light gray (#40D3D3D3).

You can find a mock implementation in sample module's App file

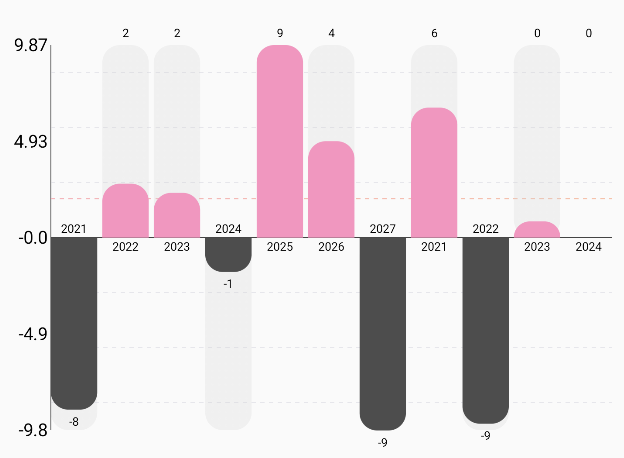

Example Usage

private fun LazyListScope.addBarChart(target: Float?, data: List<BarData>) {
    item {
        BarChart(
            modifier = Modifier.padding(10.dp).fillMaxWidth().height(300.dp),
            target = target,
            barTooltip = BarTooltip.GraphTop,
            labelConfig = LabelConfig.default().copy(
                showXLabel = true,
                xAxisCharCount = 4,
                showYLabel = true,
                textColor = Color.Black.asSolidChartColor()
            ),
            barChartColorConfig = BarChartColorConfig.default().copy(
                fillBarColor = Color(0xFFFF92C1).asSolidChartColor(),
                negativeBarColors = Color(0xFF4D4D4D).asSolidChartColor()
            ),
            data = { data },
            barChartConfig = BarChartConfig.default().copy(
                cornerRadius = CornerRadius(40F, 40F),
            ),
            onBarClick = { index, barData -> println("click in bar with $index index and data $barData") }
        )
    }
}
