Circle Chart

🍸Overview

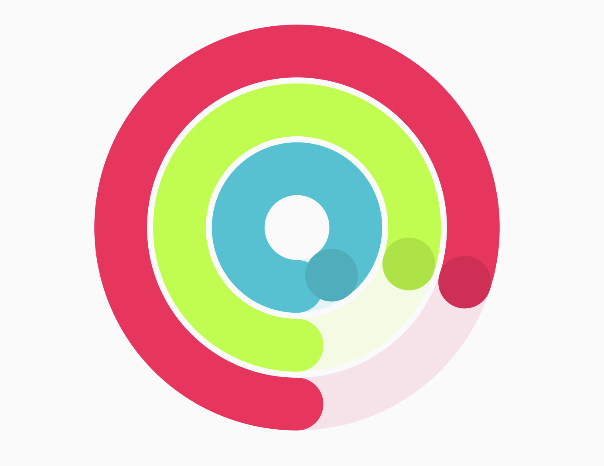

A customizable and interactive circle chart (like Apple tracking) used for visualizing proportions or segments of a dataset.

📦 Package

import com.himanshoe.charty.circle

🧱 Declaration

@Composable
fun CircleChart(
    data: () -> List<CircleData>,
    modifier: Modifier = Modifier,
    circleChartConfig: CircleChartConfig = CircleChartConfig.default(),
    onCircleClick: (CircleData) -> Unit = {}
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<CircleData>	A lambda returning the list of CircleData objects to be displayed in the chart. Each data entry defines a segment's value and appearance.
modifier	Modifier	Optional Compose Modifier to customize layout, size, padding, alignment, etc.
circleChartConfig	CircleChartConfig	Chart appearance and layout configuration (e.g. stroke width, spacing, animation, inner radius). Defaults to CircleChartConfig.default().
onCircleClick	(CircleData) -> Unit	Lambda that is invoked when a segment of the chart is clicked. Provides the corresponding CircleData item. Default is a no-op.

🧮 CircleData Model

data class CircleData(
    val value: Float,
    val color: ChartColor,
    val trackColor: ChartColor = color.value.fastMap { it.copy(alpha = 0.5F) }.asGradientChartColor(),
    val label: String,
)

Property	Type	Description
value	Float	The numeric value representing the size of the slice. This value is used to calculate the angle of the slice relative to the sum of all values.
color	ChartColor	The main color used to fill the slice. Should be visually distinct for each segment.
trackColor	ChartColor	A secondary, typically lighter or semi-transparent version of the main color. It can be used for rendering background rings, shadows, or hover states. Defaults to a gradient based on the main color with reduced alpha (50%).
label	String	The label or description of the slice. Useful for legends or tooltips.

You can find a mock implementation in sample module's App file

Example Usage

val chartItems = listOf(
    CircleData(value = 40f, label = "Food", color = Color.Red.asSolidChartColor()),
    CircleData(value = 30f, label = "Transport", color = Color.Blue.asSolidChartColor()),
    CircleData(value = 30f, label = "Others", color = Color.Green.asSolidChartColor())
)

CircleChart(
    data = { chartItems },
    modifier = Modifier.size(200.dp),
    onCircleClick = { segment ->
        println("Clicked on: ${segment.label} (${segment.value})")
    }
)
