ComparisonBarChart

🍸Overview

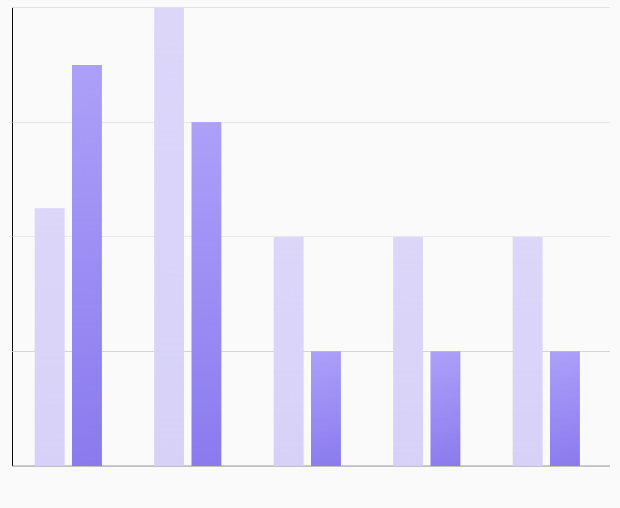

A chart that displays a grouped bar chart for comparing multiple values across common categories (e.g., monthly comparisons for different products, users, or metrics). Each group represents a category and contains multiple bars to compare distinct values within that group.

🧱 Declaration

@Composable
fun ComparisonBarChart(
    data: () -> List<ComparisonBarData>,
    modifier: Modifier = Modifier,
    labelConfig: LabelConfig = LabelConfig.default(),
    comparisonBarChartConfig: ComparisonBarChartConfig = ComparisonBarChartConfig.default(),
    onGroupClicked: (Int) -> Unit = {}
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<ComparisonBarData>	A lambda that returns a list of ComparisonBarData items. Each item defines a group with one or more bars for comparison.
modifier	Modifier	Compose Modifier to control layout, padding, size, or drawing behavior.
labelConfig	LabelConfig	Configuration for the X-axis and Y-axis labels, including font size, color, alignment, etc.
comparisonBarChartConfig	ComparisonBarChartConfig	Defines visual properties and behavior of the grouped bar chart like bar spacing, animation, alignment, max value, etc.
onGroupClicked	(Int) -> Unit	Callback triggered when a group (set of bars) is clicked. Receives the index of the clicked group. Useful for interactivity or detail views.

---

📊 ComparisonBarData Model

A data class representing a single group in a comparison bar chart. Each group corresponds to a label (e.g., a category or time period) and contains multiple bars with individual values and colors for comparison within that group.

data class ComparisonBarData(
    val label: String,
    val bars: List<Float>,
    val colors: List<ChartColor>
)

Property	Type	Description
label	String	The label representing the group on the X-axis. Common examples include month names, category names, or dates.
bars	List<Float>	A list of Float values representing the height of each bar in the group. The number of values in this list determines how many bars are shown for the group.
colors	List<ChartColor>	A list of ChartColor values that define the fill color for each corresponding bar in the bars list. Should match the size of bars for consistent rendering.

💡 Example

val chartData = listOf(
    ComparisonBarData(
        label = "Jan",
        bars = listOf(
            BarData(yValue = 50f, xValue = "Product A", barColor = Color.Red.asSolidChartColor()),
            BarData(yValue = 75f, xValue = "Product B", barColor = Color.Blue.asSolidChartColor())
        )
    ),
    ComparisonBarData(
        label = "Feb",
        bars = listOf(
            BarData(yValue = 60f, xValue = "Product A", barColor = Color.Red.asSolidChartColor()),
            BarData(yValue = 85f, xValue = "Product B", barColor = Color.Blue.asSolidChartColor())
        )
    )
)

ComparisonBarChart(
    data = { chartData },
    modifier = Modifier.fillMaxWidth(),
    onGroupClicked = { index ->

    }
)
