HorizontalBarChart

🍸Overview

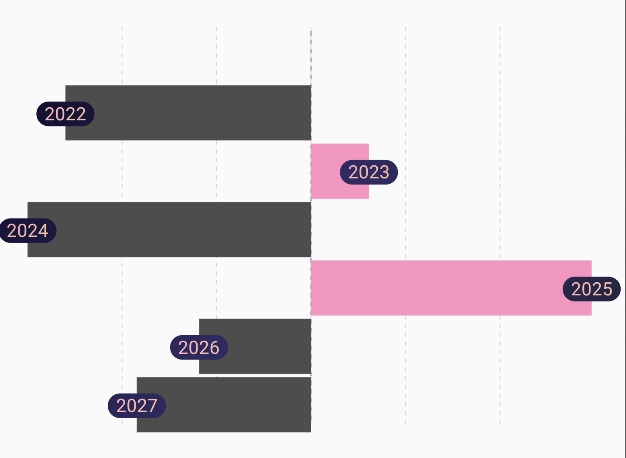

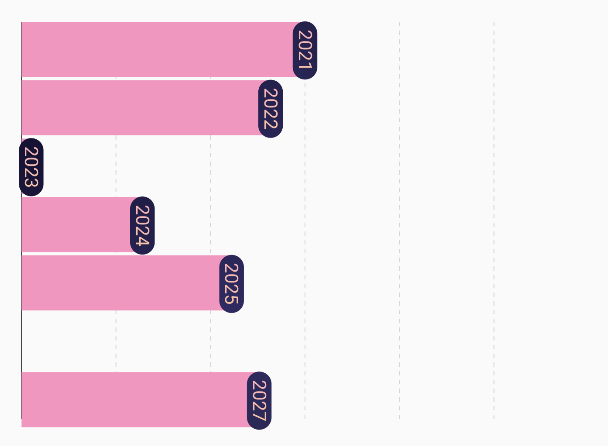

A chart that displays a horizontal bar chart, where each bar extends horizontally based on its data value. This layout is ideal when category labels are long or when you want to emphasize value comparisons along a vertical list.

🧱 Declaration

@Composable
fun HorizontalBarChart(
    data: () -> List<BarData>,
    modifier: Modifier = Modifier,
    barChartConfig: BarChartConfig = BarChartConfig.default(),
    barChartColorConfig: BarChartColorConfig = BarChartColorConfig.default(),
    horizontalBarLabelConfig: HorizontalBarLabelConfig = HorizontalBarLabelConfig.default(),
    onBarClick: (BarData) -> Unit = {}
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<BarData>	A lambda that returns the list of BarData entries to be displayed as horizontal bars. Each BarData contains the Y-value (bar length) and X-value (label/key).
modifier	Modifier	Compose Modifier for layout control, sizing, padding, or other UI decorations.
barChartConfig	BarChartConfig	Configuration object for chart behavior and layout — such as minimum number of bars, axis and grid visibility, animation, and spacing.
barChartColorConfig	BarChartColorConfig	Defines color-related customization for bars, axis lines, grid lines, and background.
horizontalBarLabelConfig	HorizontalBarLabelConfig	Styling and layout configuration for the labels displayed alongside the horizontal bars, such as text color, size, alignment, and optional background.
onBarClick	(BarData) -> Unit	Callback function invoked when a bar is clicked. Receives the corresponding BarData item for further action (e.g., navigation, tooltip, etc.).

📊 Data Model

Each bar is represented using the BarData class:

data class BarData(
    val yValue: Float,
    val xValue: Any,
    val barColor: ChartColor = Color.Unspecified.asSolidChartColor(),
    val barBackgroundColor: ChartColor = Color(0x40D3D3D3).asSolidChartColor(),
)

🔠 HorizontalBarLabelConfig

The horizontalBarLabelConfig parameter lets you customize how the labels for each horizontal bar are rendered.

data class HorizontalBarLabelConfig(
    val showLabel: Boolean,
    val hasOverlappingLabel: Boolean,
    val textColor: ChartColor,
    val textBackgroundColors: ChartColor,
    val xAxisCharCount: Int?,
    val labelTextStyle: TextStyle?,
)

If labels are not shown, users can drag their finger or scroll across the chart to reveal labels dynamically via gesture detection. This allows clean visualizations by default, but still gives access to detailed information on demand.

Property	Type	Description
showLabel	Boolean	Determines whether the label for each horizontal bar should be shown by default. If false, labels are hidden unless revealed through gestures (e.g. dragging).
hasOverlappingLabel	Boolean	Indicates whether labels are allowed to overlap with each other. If true, labels may render over each other in dense datasets.
textColor	ChartColor	The color of the label text. You can use solid or gradient chart colors.
textBackgroundColors	ChartColor	Background color behind the label text. Useful for adding contrast or highlighting the label.
xAxisCharCount	Int?	Optionally limits the number of characters shown from the X-axis label. Useful for truncation in narrow layouts. If null, no truncation is applied.
labelTextStyle	TextStyle?	Custom styling for label text (e.g., font size, weight, family, line height). If null, defaults are used.

💡 Example Usage

val performanceData = listOf(
    BarData(yValue = 80f, xValue = "Alice"),
    BarData(yValue = 65f, xValue = "Bob"),
    BarData(yValue = 90f, xValue = "Charlie")
)

HorizontalBarChart(
    data = { performanceData },
    modifier = Modifier.fillMaxWidth(),
    onBarClick = { bar ->
        println("Clicked on ${bar.xValue} with value ${bar.yValue}")
    }
)
