LineBarChart

🍸Overview

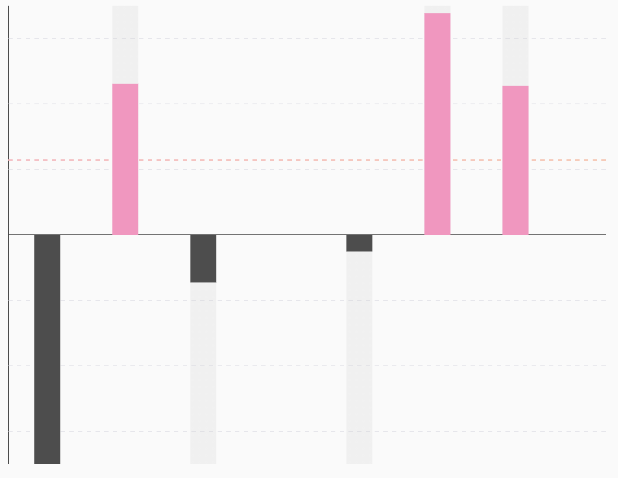

A chart that displays a bar chart with an optional target line overlaid. This chart is useful for showing individual bar values while highlighting a specific target or benchmark using a line (e.g., sales goal, average, or threshold).

🧱 Declaration

@Composable
fun LineBarChart(
    data: () -> List<BarData>,
    modifier: Modifier = Modifier,
    target: Float? = null,
    targetConfig: TargetConfig = TargetConfig.default(),
    barChartConfig: BarChartConfig = BarChartConfig.default(),
    labelConfig: LabelConfig = LabelConfig.default(),
    barChartColorConfig: BarChartColorConfig = BarChartColorConfig.default(),
    onBarClick: (Int, BarData) -> Unit = { _, _ -> },
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<BarData>	A lambda function returning the list of bar values to render. Each BarData contains the value, label, and color of a bar.
modifier	Modifier	A Jetpack Compose Modifier to customize layout, size, padding, etc.
target	Float?	A numerical value representing a target line to be drawn across the chart. If null, no target line is shown.
targetConfig	TargetConfig	Configuration object to style and position the target line (e.g., stroke color, width, label).
barChartConfig	BarChartConfig	Controls the layout behavior of the chart including min bar count, animation, axis visibility, and spacing.
labelConfig	LabelConfig	Configuration for customizing the bar labels (position, visibility, text style).
barChartColorConfig	BarChartColorConfig	Defines the colors for bars, axis lines, grid lines, and backgrounds.
onBarClick	(Int, BarData) -> Unit	Lambda called when a user taps on a bar. Provides the index and associated BarData. Useful for interactivity and tooltips.

📊 Data Model

data class BarData(
    val yValue: Float,
    val xValue: Any,
    val barColor: ChartColor = Color.Unspecified.asSolidChartColor(),
    val barBackgroundColor: ChartColor = Color(0x40D3D3D3).asSolidChartColor(),
)

🔠 Target

• Use the target parameter to draw a horizontal reference line across the chart.
• Ideal for benchmarks, goals, or thresholds (e.g., expected sales, performance targets).
• Styled using TargetConfig, which allows customizing:
  • Color and stroke width
  • Dashed/solid appearance
  • Label and label positioning

💡 Example Usage

LineBarChart(
    data = {
        listOf(
            BarData(80f, "Jan"),
            BarData(120f, "Feb"),
            BarData(60f, "Mar")
        )
    },
    target = 100f,
    targetConfig = TargetConfig(
        color = Color.Red,
        strokeWidth = 2.dp,
        showLabel = true,
        label = "Target: 100"
    ),
    onBarClick = { index, bar ->
        println("Bar ${index + 1}: ${bar.yValue}")
    }
)
