LineChart

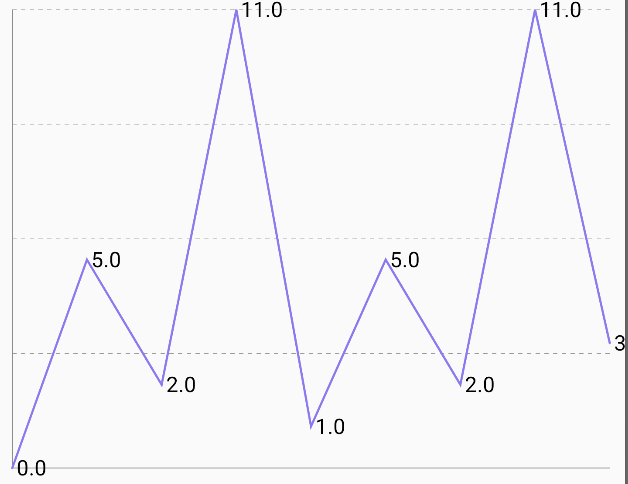

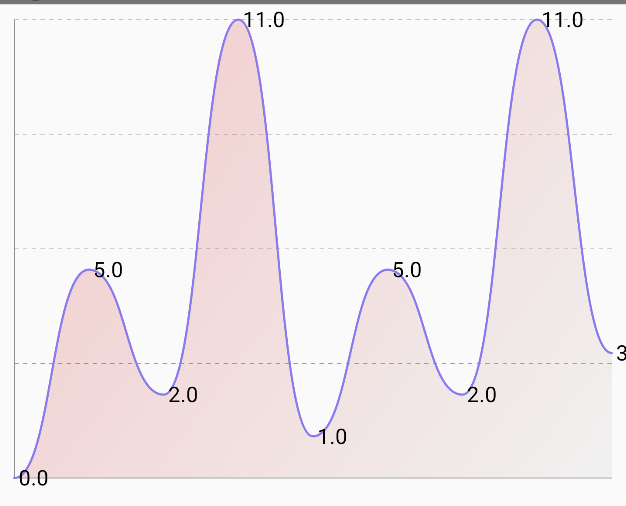

Smooth Line Curve	Pointed Line Curve	Line Filled

🍸Overview

A chart that renders a line chart to visualize continuous or time-series data. Supports various configurations including smooth curves, area fill, stroke lines, interactivity, and targets.

---

🧱 Declaration

There are two overloaded versions of LineChart, each offering different forms of interaction:

Version 1: With onClick support

@Composable
fun LineChart(
    data: () -> List<LineData>,
    modifier: Modifier = Modifier,
    smoothLineCurve: Boolean = true,
    showFilledArea: Boolean = false,
    showLineStroke: Boolean = true,
    showOnClickBar: Boolean = true,
    colorConfig: LineChartColorConfig = LineChartColorConfig.default(),
    labelConfig: LabelConfig = LabelConfig.default(),
    target: Float? = null,
    targetConfig: TargetConfig = TargetConfig.default(),
    chartConfig: LineChartConfig = LineChartConfig(),
    onClick: (LineData) -> Unit = {}
)

Version 2: With onValueChange support

@Composable
fun LineChart(
    data: () -> List<LineData>,
    modifier: Modifier = Modifier,
    smoothLineCurve: Boolean = true,
    showFilledArea: Boolean = false,
    showLineStroke: Boolean = true,
    colorConfig: LineChartColorConfig = LineChartColorConfig.default(),
    labelConfig: LabelConfig = LabelConfig.default(),
    target: Float? = null,
    targetConfig: TargetConfig = TargetConfig.default(),
    chartConfig: LineChartConfig = LineChartConfig(),
    onValueChange: (LineData) -> Unit = {},
)

---

🔧 Parameters

Parameter	Type	Description
data	() -> List<LineData>	Lambda returning a list of LineData points representing x/y values to be plotted.
modifier	Modifier	Optional Jetpack Compose modifier for layout styling.
smoothLineCurve	Boolean	If true, curves between data points will be smoothly interpolated using Bézier or spline curves. If false, straight lines are drawn.
showFilledArea	Boolean	If true, the area under the line is filled with gradient or solid color.
showLineStroke	Boolean	If true, a visible line is drawn over the chart representing the data.
showOnClickBar	Boolean	(Only in version 1) If true, shows a vertical indicator when a value is clicked.
colorConfig	LineChartColorConfig	Defines line stroke color, fill color, gradients, and background.
labelConfig	LabelConfig	Manages display and styling of axis or data labels.
target	Float?	Optional horizontal line to show a benchmark or target.
targetConfig	TargetConfig	Configuration of the target line (color, thickness, label, etc).
chartConfig	LineChartConfig	Controls axis visibility, padding, animation, min/max values, etc.
onClick	(LineData) -> Unit	(Only in version 1) Triggered when a data point is clicked.
onValueChange	(LineData) -> Unit	(Only in version 2) Triggered on drag interactions over the line chart.

---

⚠️ Constraints

require(showFilledArea || showLineStroke) {
    "Both showFilledArea and showLineStroke cannot be false at the same time"
}

At least one of showFilledArea or showLineStroke must be true, otherwise an IllegalArgumentException is thrown. This ensures the chart is visible.

---

📊 Data Model

Each data point in the chart is represented by the LineData class:

data class LineData(
    val xValue: Any,
    val yValue: Float
)

---

💡 Example Usage

LineChart(
    data = {
        listOf(
            LineData("Jan", 10f),
            LineData("Feb", 40f),
            LineData("Mar", 25f)
        )
    },
    smoothLineCurve = true,
    showFilledArea = true,
    showLineStroke = true,
    target = 30f,
    targetConfig = TargetConfig(label = "Average"),
    onClick = { lineData -> println("Clicked: ${lineData.xValue} -> ${lineData.yValue}") }
)
