Line Stacked Bar Chart

🍸Overview

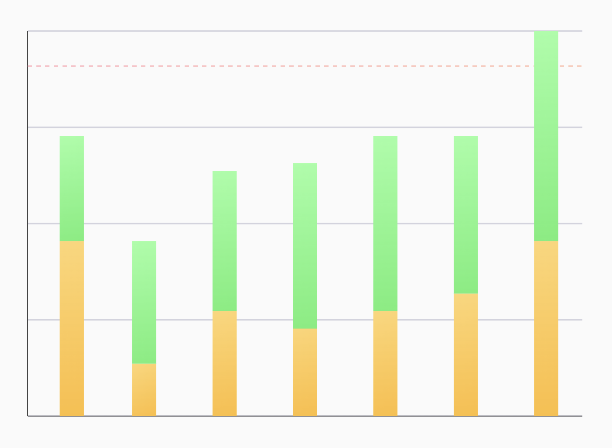

The LineStackedBarChart offers a unique way to visualize stacked data. It's a variation of a standard stacked bar chart, but instead of wider bars, each stack is rendered as a thin vertical line composed of multiple segments. This chart is suitable for showing part-to-whole relationships across multiple categories, with a visually lighter footprint than a standard StackedBarChart.

🧱 Declaration

@Composable
fun LineStackedBarChart(
    data: () -> List<StackBarData>,
    modifier: Modifier = Modifier,
    target: Float? = null,
    targetConfig: TargetConfig = TargetConfig.default(),
    stackBarConfig: StackBarConfig = StackBarConfig.default(),
    labelConfig: LabelConfig = LabelConfig.default(),
    barChartColorConfig: BarChartColorConfig = BarChartColorConfig.default(),
    onBarClick: (Int, StackBarData) -> Unit = { _, _ -> }
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<StackBarData>	A lambda function that returns a list of StackBarData. Each StackBarData object represents a full vertical "line" stack.
modifier	Modifier	A Modifier for customizing the layout (e.g., size, padding) of the chart. (Optional)
target	Float?	An optional Float value. If provided, a horizontal line will be drawn at this Y-value on the chart. (Optional)
targetConfig	TargetConfig	A TargetConfig object for configuring the appearance of the target line. (Optional, defaults to TargetConfig.default())
stackBarConfig	StackBarConfig	A StackBarConfig object for configuring chart aspects. Key properties include showCurvedBar, showAxisLines, showGridLines, minimumBarCount. (Optional, defaults to StackBarConfig.default())
labelConfig	LabelConfig	A LabelConfig object for configuring the appearance of X-axis and Y-axis labels. (Optional, defaults to LabelConfig.default())
barChartColorConfig	BarChartColorConfig	A BarChartColorConfig object used here primarily for configuring the colors of axis lines and grid lines. The colors for the stack segments themselves are defined within each StackBarData item. (Optional, defaults to BarChartColorConfig.default())
onBarClick	(Int, StackBarData) -> Unit	A lambda function (Int, StackBarData) -> Unit that is invoked when a "line" stack is clicked. It receives the index of the clicked stack and the corresponding StackBarData. (Optional)

🧮 StackBarData Model

data class StackBarData(
    val label: String,
    val values: List<Float>,
    val colors: List<ChartColor>
)

Property	Type	Description
label	String	The label for this stack, displayed on the X-axis.
values	List<Float>	A list of float values, where each value is a segment in the stack. The height of each segment is proportional to its value relative to the total sum of values in this stack.
colors	List<ChartColor>	A list of ChartColor for each corresponding segment in values. The size of this list should match the values list.

You can find a mock implementation in sample module's App file

Example Usage

@Composable
fun SampleLineStackedBarChart() {
  LineStackedBarChart(
    data = { data },
    target = 100f,
    modifier = Modifier.fillMaxWidth().height(300.dp).padding(24.dp)
  )
}
