Multi Line Chart

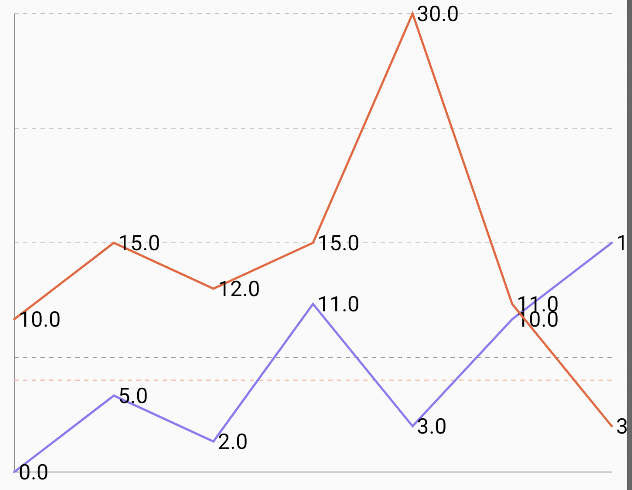

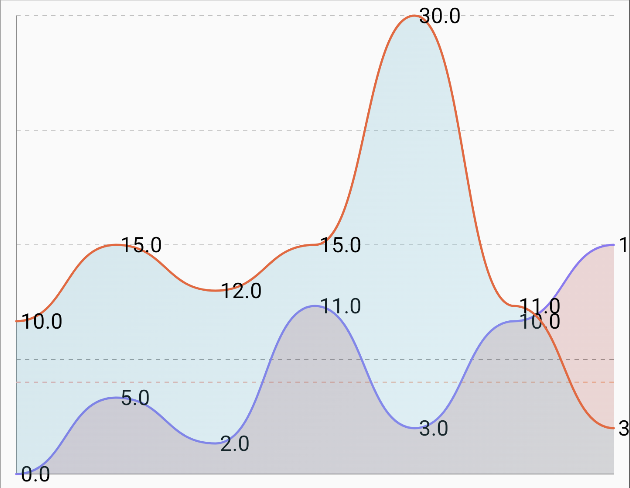

Pointed Line Curve	Smooth Line Curve

🍸Overview

A multi-line chart displays multiple series of data points connected by lines. It is particularly useful for comparing trends over time or across different categories for several groups simultaneously. This chart allows for easy visualization of relationships, crossovers, and divergences between different datasets.

🧱 Declaration

@Composable
fun MultiLineChart(
    lines: () -> List<LineData>,
    modifier: Modifier = Modifier,
    lineConfig: LineConfig = LineConfig.default(),
    xAxisConfig: XAxisConfig = XAxisConfig.default(),
    yAxisConfig: YAxisConfig = YAxisConfig.default(),
    labelConfig: LabelConfig = LabelConfig.default(),
    onPointClick: (lineIndex: Int, pointIndex: Int, point: PointData) -> Unit = { _, _, _ -> }
)

🔧 Parameters

Parameter	Type	Description
lines	() -> List<LineData>	A lambda returning the list of LineData entries. Each LineData defines a separate line with its data points, color, and other properties.
modifier	Modifier	Optional Compose Modifier for layout behavior, styling, padding, etc.
lineConfig	LineConfig	Configuration for the appearance of all lines, such as default point visibility, point style, line thickness, and curve rendering (e.g., cubic bezier). Individual LineData properties can override some of these.
xAxisConfig	XAxisConfig	Configuration specific to the X-axis, like label formatting, grid lines, and axis line visibility.
yAxisConfig	YAxisConfig	Configuration specific to the Y-axis, including label formatting, value range, grid lines, and axis line visibility.
labelConfig	LabelConfig	Controls how labels for X and Y axes are rendered (font size, visibility, position, color etc.).
onPointClick	(lineIndex: Int, pointIndex: Int, point: PointData) -> Unit	Lambda called when a data point on a line is clicked. Provides indices for the line and point, and the PointData itself. Default is no-op.

🧮 Data Models

MultiLineData Model

data class MultiLineData(
    val data: List<LineData>,
    val colorConfig: LineChartColorConfig
)

Parameter	Type	Description
data	List<LineData>	A list of LineData points representing the values to be plotted for this line.
colorConfig	LineChartColorConfig	The color and styling configuration specific to this line, including stroke, fill, gradients, etc.

You can find a mock implementation in sample module's App file

Example Usage

@Composable
fun SampleMultiLineChart() {
    MultiLineChart(
        modifier = Modifier.fillMaxWidth().height(300.dp).padding(16.dp),
        lines = { chartLinesData },
        labelConfig = LabelConfig.default().copy(
            showXLabel = true,
            showYLabel = true
        ),
        lineConfig = LineConfig.default().copy(
            showPoints = true
        ),
        onPointClick = { lineIndex, pointIndex, point ->   }
    )
}
