🍸Overview

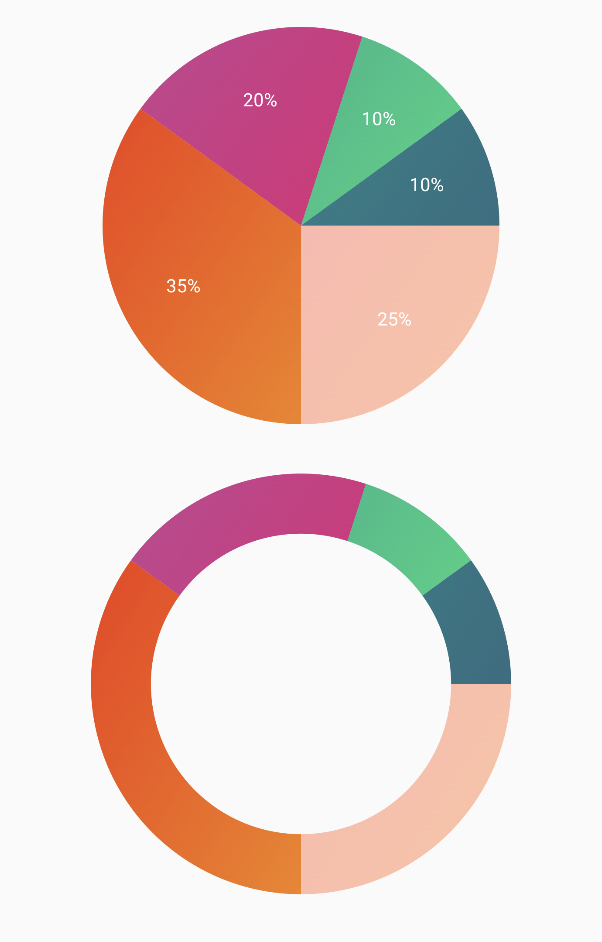

This function displays a Pie Chart using a list of PieChartData slices. It supports rendering either a standard pie chart or a donut-style chart (with a hole in the center). Each slice is interactive and can trigger a click callback.

🧱 Declaration

@Composable
fun PieChart(
    data: () -> List<PieChartData>,
    modifier: Modifier = Modifier,
    isDonutChart: Boolean = false,
    onPieChartSliceClick: (PieChartData) -> Unit = {}
)

isDonutChart is used to make donut of PieChart

🔧 Parameters

Parameter	Type	Description
data	() -> List<PieChartData>	A lambda that returns the list of pie slices to display. Each slice is represented by a PieChartData object.
modifier	Modifier	A Modifier for customizing the layout and appearance of the chart (e.g., size, padding, etc.).
isDonutChart	Boolean	If true, the chart is displayed as a donut (with a circular center cut out). Default is false for a full pie.
onPieChartSliceClick	(PieChartData) -> Unit	Callback invoked when a slice is clicked, providing the clicked PieChartData as a parameter. Useful for interactivity like tooltips or data inspection.

🧮 PieChartData Model

data class PieChartData(
    val value: Float,
    val color: ChartColor,
    val labelColor: ChartColor = Color.White.asSolidChartColor(),
    val label: String,
)

Parameter	Type	Description
value	Float	The numeric value of the slice. This determines the size (angle) of the slice in the chart.
color	ChartColor	The fill color of the slice. Can be solid or gradient depending on implementation.
labelColor	ChartColor	The color of the text label associated with the slice. Defaults to white (Color.White).
label	String	The textual label to display for the slice. Typically shown in or near the slice.

You can find a mock implementation in sample module's App file

Example Usage

@Composable
fun SamplePieChart() {
    PieChart(
        data = { samplePieData },
        isDonutChart = true,
        onPieChartSliceClick = { slice -> println("Clicked: ${slice.label}") },
        modifier = Modifier.size(200.dp)
    )
}
