PointChart

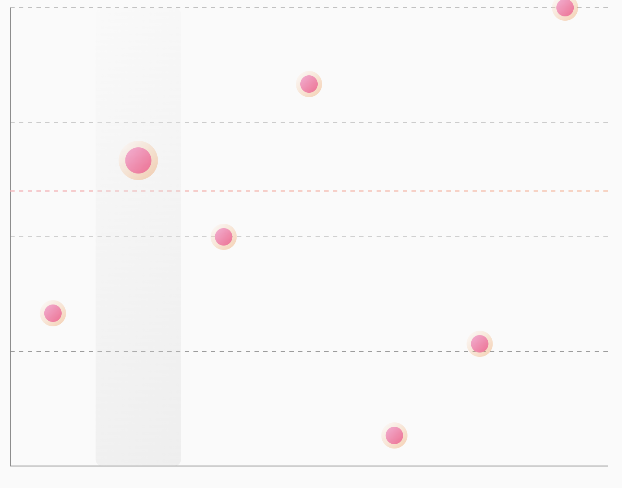

Point Chart Preview

🍸Overview

Renders a point chart where each data point is plotted on a 2D axis, useful for visualizing discrete data points without connecting lines.

---

🧱 Declaration

@Composable
fun PointChart(
    data: () -> List<PointData>,
    modifier: Modifier = Modifier,
    labelConfig: LabelConfig = LabelConfig.default(),
    colorConfig: PointChartColorConfig = PointChartColorConfig.default(),
    chartConfig: PointChartConfig = PointChartConfig(),
    target: Float? = null,
    targetConfig: TargetConfig = TargetConfig.default(),
    onPointClick: (Int, PointData) -> Unit = { _, _ -> }
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<PointData>	Lambda returning the list of data points to plot. Each PointData contains the position and optional visual settings.
modifier	Modifier	Modifier to control layout, size, and gestures.
labelConfig	LabelConfig	Configuration for axis labels and styling.
colorConfig	PointChartColorConfig	Defines color configuration for points, axes, and grid.
chartConfig	PointChartConfig	Visual and animation configuration for the chart (see below).
target	Float?	Optional target line (e.g. goal threshold) shown on the chart.
targetConfig	TargetConfig	Styling for the optional target line.
onPointClick	(Int, PointData) -> Unit	Callback when a point is tapped. Provides index and data point.

---

📊 Data Model

PointData

Each data point in the chart is represented by the PointData class:

data class PointData(
    val yValue: Float,
    val xValue: Any,
)

⚙️ PointChartConfig

Configuration options for customizing the appearance and animation of a PointChart.

data class PointChartConfig(
    val axisLineWidth: Float = 2f,
    val gridLineWidth: Float = 1f,
    val circleRadius: Float = 10f,
    val showClickedBar: Boolean = true,
    val animationDurationMillis: Int = 500,
    val animationEasing: Easing = LinearEasing,
    val animatePoints: Boolean = true,
    val gridLinePathEffect: PathEffect = PathEffect.dashPathEffect(floatArrayOf(10f, 10f), 0f),
)

Parameter	Type	Description
axisLineWidth	Float	Width of the X and Y axis lines.
gridLineWidth	Float	Width of the horizontal/vertical grid lines.
circleRadius	Float	Radius of each plotted point on the chart.
showClickedBar	Boolean	Whether to visually highlight the selected/clicked point.
animationDurationMillis	Int	Duration of the entry animation for points.
animationEasing	Easing	The easing function used during animation.
animatePoints	Boolean	If true, points animate when the chart is first drawn.
gridLinePathEffect	PathEffect	The pattern used for drawing grid lines, default is dashed lines.

---

💡 Example Usage

PointChart(
    data = { data },
    target = 18f,
    colorConfig = PointChartColorConfig.default(),
    chartConfig = PointChartConfig(circleRadius = 20F),
    modifier = Modifier.padding(10.dp).fillMaxWidth().height(300.dp),
    onPointClick = { index, circleData -> }
)
