📶 SignalProgressBarChart

🍸Overview

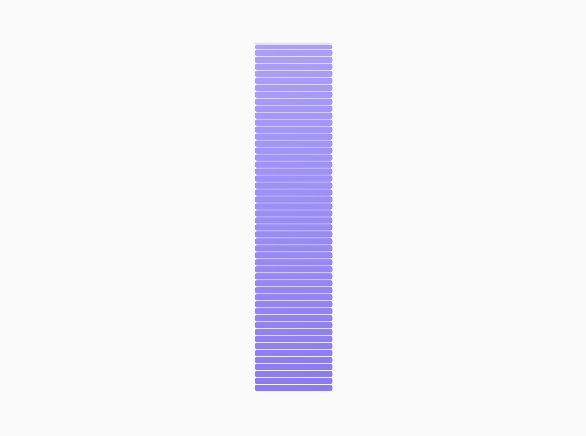

A simple signal-style bar chart that displays progress using vertically stacked blocks. Visually resembles mobile network signal indicators.

🧱 Declaration

@Composable
fun SignalProgressBarChart(
    progress: () -> Float,
    maxProgress: Float = 100F,
    modifier: Modifier = Modifier,
    totalBlocks: Int = 10,
    trackColor: ChartColor = Color.Gray.asSolidChartColor(),
    progressColor: ChartColor = Color.Green.asSolidChartColor(),
    gapRatio: Float = 0.1F
)

---

🔧 Parameters

Parameter	Type	Description
progress	() -> Float	Lambda returning the current progress value.
maxProgress	Float	Maximum possible progress. Default is 100f.
modifier	Modifier	Modifier to customize layout, size, gesture, etc.
totalBlocks	Int	Total number of vertical blocks in the chart.
trackColor	ChartColor	Color of the unfilled (track) blocks.
progressColor	ChartColor	Color of the filled (progress) blocks.
gapRatio	Float	Fraction of space between each block relative to its height (0.1 = 10% gap).

---

💡 Notes

• The blocks fill vertically from bottom to top based on progress / maxProgress.
• Useful for visual indicators such as signal strength, step completion, or tiered progress.
• The gapRatio allows customization of spacing between blocks for a tighter or more spaced-out look.
• You can pass a dynamic progress lambda to animate or update progress in real time.

---

📌 Example

SignalProgressBarChart(
    progress = { 40f },
    maxProgress = 100f,
    totalBlocks = 5,
    progressColor = Color.Blue.asSolidChartColor(),
    trackColor = Color.LightGray.asSolidChartColor(),
    gapRatio = 0.15f
)
