🧭 SpeedometerProgressBar

🍸Overview

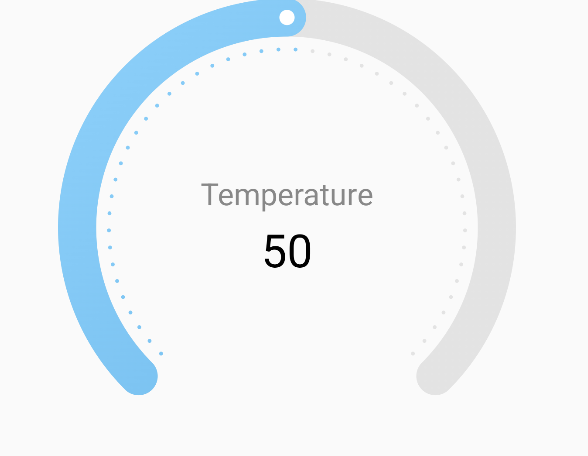

A circular speedometer-style progress bar with animated progress, customizable colors, arc dots, and center text. Ideal for dashboards, gauges, or motivational UI components.

🧱 Declaration

@Composable
fun SpeedometerProgressBar(
    progress: () -> Float,
    title: String,
    color: ChartColor,
    progressIndicatorColor: ChartColor,
    trackColor: ChartColor,
    modifier: Modifier = Modifier,
    dotConfig: DotConfig = DotConfig.default(),
    titleTextConfig: TextConfig = TextConfig.default(),
    subTitleTextConfig: TextConfig = TextConfig.default(fontSize = 20.sp),
)

---

🔧 Parameters

Parameter	Type	Description
progress	() -> Float	Lambda returning progress between 0f and 1f.
title	String	Text shown at the center of the speedometer.
color	ChartColor	Color of the progress arc.
progressIndicatorColor	ChartColor	Color of the indicator circle on the arc.
trackColor	ChartColor	Color of the background arc (track).
modifier	Modifier	Modifier for size, padding, and gesture handling.
dotConfig	DotConfig	Configuration for arc dots (size, count, spacing).
titleTextConfig	TextConfig	Typography for the main title text.
subTitleTextConfig	TextConfig	Typography for optional subtitle or progress info.

---

✨ Features

• 🌀 Smooth animated arc indicating progress.
• 🟢 Optional indicator dot moves with progress.
• 🔘 Decorative dots along the arc using DotConfig.
• 🔤 Centered title + subtitle text using TextConfig.
• 🔄 Fully customizable using modifiers and color configs.

---

📌 Example

SpeedometerProgressBar(
    progress = { 0.65f },
    title = "65%",
    color = Color.Green.asSolidChartColor(),
    progressIndicatorColor = Color.Black.asSolidChartColor(),
    trackColor = Color.LightGray.asSolidChartColor(),
    dotConfig = DotConfig(count = 30),
    titleTextConfig = TextConfig(fontSize = 24.sp, fontWeight = FontWeight.Bold),
    subTitleTextConfig = TextConfig(fontSize = 14.sp, color = Color.Gray)
)
