📊 StackedBarChart

🍸Overview

A bar that renders a horizontal storage bar, where each segment represents a portion of total usage (like memory, disk, or category breakdowns). The segments are color-coded and interactive.

🧱 Declaration

@Composable
fun StorageBar(
    data: () -> List<StorageData>,
    trackColor: ChartColor = Color(0xD3D3D3DE).asSolidChartColor(),
    modifier: Modifier = Modifier,
    onClick: (StorageData) -> Unit = {}
)

🔧 Parameters

Parameter	Type	Description
data	() -> List<StorageData>	Lambda returning a list of segments. Each segment contains a value and category info.
trackColor	ChartColor	The background track color behind all segments. Defaults to light gray.
modifier	Modifier	Modifier for layout and styling customization.
onClick	(StorageData) -> Unit	Callback triggered when a segment is tapped. Provides the corresponding StorageData.

📊 Data Model

StorageData consists of multiple segments:

data class StorageData(
    val label: String,
    val value: Float,
    val color: ChartColor
)

• label: The category name (e.g., "Photos", "Apps").
• value: Proportional value for this segment.
• color: The color representing this category in the bar.

✨ Features

• 📊 Proportional segments based on total value.
• 🎨 Custom color for each segment.
• 🖱️ Interactive — tap on a segment to receive the related StorageData.
• 🎚️ Full-width visual indicator bar with background track color.

---

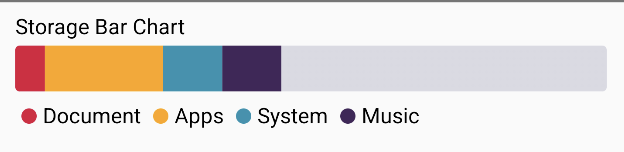

📌 Example

StorageBar(
    data = {
        listOf(
            StorageData("Photos", 40f, Color.Blue.asSolidChartColor()),
            StorageData("Apps", 30f, Color.Red.asSolidChartColor()),
            StorageData("Other", 30f, Color.Gray.asSolidChartColor())
        )
    },
    trackColor = Color.LightGray.asSolidChartColor(),
    onClick = { segment -> println("Clicked: ${segment.label}") }
)
