MosaicBarChart#

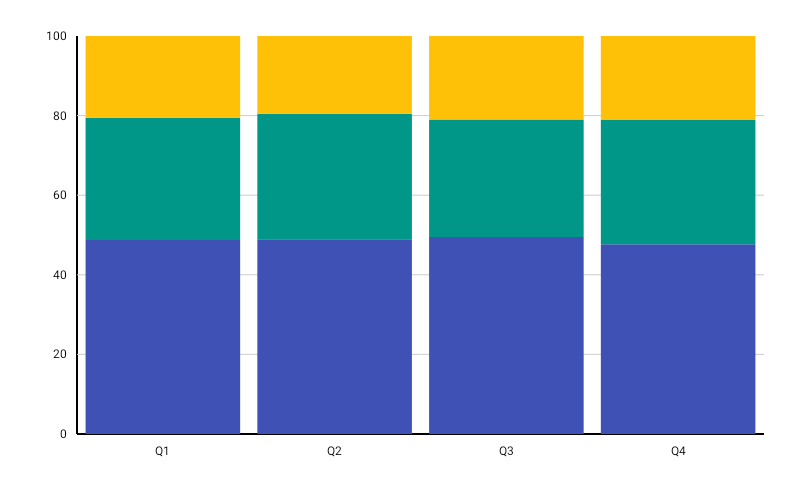

Best for comparing the composition of several categories: each BarGroup becomes one vertical column, and its values are stacked as percentages so every column fills the full plot height.
MosaicBarChart( data = { listOf( BarGroup(label = "Q1", values = listOf(10f, 50f, 30f, 90f)), BarGroup(label = "Q2", values = listOf(70f, 20f, 80f, 40f)), ) }, modifier = Modifier.fillMaxWidth().height(200.dp), config = MosaicBarChartConfig( barWidthFraction = 0.9f, animation = Animation.Default, ), onSegmentClick = { segment -> println("${segment.barGroup.label}[${segment.segmentIndex}] = ${segment.segmentPercentage}%") },)Each BarGroup.values list is one column, not one row. Values of 0f or less are skipped. A group whose positive values sum to zero draws nothing.
MosaicBarChart has no chart-level colour parameter. Segments use BarGroup.colors when supplied, and otherwise cycle through a built-in three-colour palette.
Click data: MosaicBarSegment(barGroup, segmentIndex, segmentValue, segmentPercentage)
Fixed 0–100% axis#
The value axis is always 0%–100%, because every column is normalised to fill the plot height. Column totals are therefore not comparable across columns — only the internal proportions are. Use StackedBarChart when the absolute totals matter.
Rolling window#
config = MosaicBarChartConfig(visibleWindow = 12, animation = Animation.Fast)Keeps only the last N columns on screen; null or at least 2.
Persistent markers#
config = MosaicBarChartConfig( visibleWindow = 12, markers = listOf(PersistentMarker(dataIndex = -1, label = "Latest")),)A negative dataIndex counts back from the end of the drawn data, so -1 marks the newest column.
Animating value changes#
config = MosaicBarChartConfig(animateValueChanges = true, animation = Animation.Fast)Tooltip#
MosaicBarChart( data = { groups }, modifier = Modifier.fillMaxWidth().height(200.dp), tooltip = ChartTooltip.canvas(), config = MosaicBarChartConfig( tooltipFormatter = { segment -> "${segment.barGroup.label}: ${segment.segmentPercentage.toInt()}%" }, ),)Accessibility#
A generated summary plus one focusable node per column.
interactionConfig = ChartInteractionConfig(accessibilityDescription = "Traffic source mix by quarter")MosaicBarChartConfig#
| Property | Type | Default | Description |
|---|---|---|---|
barWidthFraction | Float | 0.9f | Column width as a fraction of its slot; 0f..1f |
animation | Animation | Animation.Default | Grow-from-bottom entry animation |
animateValueChanges | Boolean | false | Tween segment values on data change |
markers | List<PersistentMarker> | emptyList() | Persistent pinned labels |
tooltipConfig | TooltipConfig? | null (the theme's) | Canvas tooltip appearance |
tooltipPosition | TooltipPosition | AUTO | ABOVE, BELOW, or AUTO |
tooltipFormatter | (MosaicBarSegment) -> String | "label [i]: n%" | Tooltip text |
visibleWindow | Int? | null | Rolling "show last N" window; null or >= 2 |
Limitations#
- There is no corner-radius or segment-spacing option on
MosaicBarChartConfig; segments are drawn flush. - No crosshair, no reference line, and no data labels.
