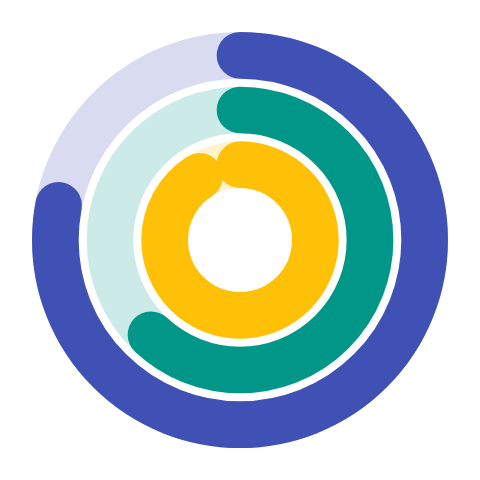

CircularProgressIndicator#
Best for one or more concentric progress rings — activity rings, goal completion, multi-metric progress.
CircularProgressIndicator( rings = { listOf( CircularRingData( label = "Steps", progress = 7500f, maxValue = 10000f, color = ChartyColor.Solid(Color(0xFFE91E63)), ), CircularRingData( label = "Calories", progress = 420f, maxValue = 600f, color = ChartyColor.Solid(Color(0xFF6650A4)), ), CircularRingData( label = "Active Minutes", progress = 35f, maxValue = 60f, color = ChartyColor.Solid(Color(0xFF00BCD4)), ), ) }, modifier = Modifier.size(280.dp), config = CircularProgressConfig( animation = Animation.Default, gapBetweenRings = 10f, strokeCap = StrokeCap.Round, ), onRingClick = { ring, index -> println("Tapped ${ring.label} (index $index)") }, centerContent = { Column(horizontalAlignment = Alignment.CenterHorizontally) { Text(text = "Activity", style = MaterialTheme.typography.labelMedium) Text(text = "Today", style = MaterialTheme.typography.bodySmall) } }, accessibilityDescription = "Daily activity rings: Steps 75%, Calories 70%, Active Minutes 58%",)Note the parameter name: rings, not data. onRingClick receives (ring: CircularRingData, index: Int).
Rings are drawn concentrically from outermost (index 0) inward. CircularRingData requires a non-blank label, non-negative progress, positive maxValue, and a color: ChartyColor. Its helpers — calculatePercentage(), calculateSweepAngle(), isComplete(), withClampedProgress() — all clamp progress into [0, maxValue], so an overshooting ring never draws past a full turn.
Each ring may also carry a backgroundColor (defaults to its own colour at 20% alpha), plus shadowColor and shadowRadius for use with enableShadows.
Centre content#
centerContent = { Text(text = "78%", style = MaterialTheme.typography.headlineMedium)}centerContent is a BoxScope composable rendered centred over the rings. When it is null and config.showCenterText is true, the indicator instead draws the first (outermost) ring's percentage as text — not its label, and not the innermost ring.
config = CircularProgressConfig( showCenterText = true, centerTextStyle = TextStyle(fontSize = 28.sp, fontWeight = FontWeight.Bold),)Rotation#
rotationEnabled starts a continuous automatic rotation of the whole indicator, looping every rotationDurationMs. It is a decorative animation, not a user gesture — there is no drag-to-rotate.
config = CircularProgressConfig( rotationEnabled = true, rotationDurationMs = 4000,)Geometry#
config = CircularProgressConfig( startAngleDegrees = -90f, ringDirection = RingDirection.COUNTER_CLOCKWISE, gapBetweenRings = 12f, centerHoleRatio = 0.3f, paddingDp = 24f,)centerHoleRatio reserves an untouched hole at the middle (0f..0.5f) and also shrinks the tappable area accordingly.
Accessibility#
The indicator attaches a generated summary ("Circular progress indicator, 3 rings. Steps: 75%. Calories: 70%. …"). Override it with accessibilityDescription, or pass an empty string to suppress it.
CircularProgressConfig#
| Property | Type | Default | Description |
|---|---|---|---|
gapBetweenRings | Float | 8f | Gap between concentric rings; non-negative |
startAngleDegrees | Float | -90f | Angle progress starts from (12 o'clock) |
ringDirection | RingDirection | CLOCKWISE | CLOCKWISE or COUNTER_CLOCKWISE |
strokeCap | StrokeCap | StrokeCap.Round | Cap of each ring's stroke |
animation | Animation | Animation.Default | Progress sweep-in animation |
enableShadows | Boolean | false | Draws a ring's shadow when it sets shadowColor and shadowRadius |
centerHoleRatio | Float | 0f | Untouched centre hole; 0f..0.5f |
rotationEnabled | Boolean | false | Continuous automatic rotation |
rotationDurationMs | Int | 3000 | Period of one rotation; must be positive |
interactionEnabled | Boolean | true | Enables the tap handling behind onRingClick |
showCenterText | Boolean | false | Draws the outermost ring's percentage; ignored when centerContent is set |
paddingDp | Float | 16f | Padding around the whole indicator; non-negative |
centerTextStyle | TextStyle | 24 sp, bold, black | Style of that centre text |
Limitations#
- Not a Cartesian chart: no
visibleWindow, nomarkers, noanimateValueChanges, no crosshair, no tooltip slot. - Ring stroke width is derived from the size, the ring count, and
gapBetweenRings; it is not directly configurable.
